Fortinet FortiAP 231K
FortiGate, FortiEdge Cloud, or SASE-managed — 2x2 Indoor Tri-radio 11be 6Ghz Capable APs
Fortinet Products

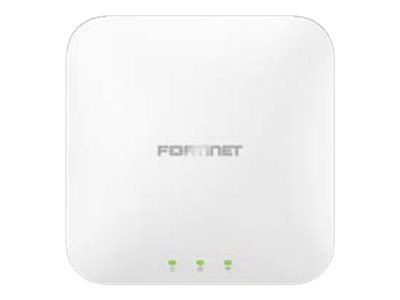

FortiAP-231K Access Point
FortiAP-231K Indoor Wireless AP - (Wi-Fi-7 IEEE Tri-band 2.4/5/6GHz 2+2+2 2 streams 3 radios), internal antennas, 100/1000/2500/5000 Base-T RJ45, BT/BLE, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP250-PA. Region Code A
#FAP-241K
Our Price: Request a Quote
Our Price: Request a Quote
Click here to jump to more pricing!
Overview:
FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
FortiAP 231K are enterprise class Wi-Fi 7 indoor APs provide three radios and two spatial streams. These access points support the 6 GHz band and have one 5 Gigabit Ethernet port. The APs can provide 24/7 background scanning across all bands while still providing access on 2.4 GHz, 5 GHz, and 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and location applications.
Note: For FAP-231K, use of the 6GHz band is subject to regional regulatory authority approval.
- Three-Radio 2.4GHz + 5GHz + 6GHz | 4 Wi-Fi Antennas + 1 BLE/Zigbee antenna + 1 GPS antenna
- 2x2 MU-MIMO | Up to 688 Mbps + 2.88 Gbps + 5.76 Gbps data rate
| HARDWARE OFFERINGS | ANTENNA TYPE | INDOOR USE | BLE SUPPORT |
|---|---|---|---|
| 2x2 Indoor Tri-radio 11be 6Ghz Capable APs | Internal | 5.2 |
Highlights
- Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance
- Built-in foundation for zerotrust network access (ZTNA) and secure access service edge (SASE), allowing you the flexibility to easily deploy microbranches with the security you need at the edge of your network
- Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filter protect the wireless LAN from the latest security threats
- Protects the network from advanced wireless threats and satisfies industry compliance such as PCI DSS
Specifications:
| FortiAP 231K | |
|---|---|
| Hardware | |
| Type | Indoor AP |
| Number of Radios | 3 Wi-Fi + 1 BLE |
| Number of Antennas | 6. x2 Dual band Wi-Fi + x2 6GHz band Wi-Fi + x1 BLE/ZigBee antenna + x1 GPS antenna |
| Antenna Type Support | N/A |
| Antenna Type and Peak Gain | PIFA 2.4/5GHz dual band antenna: 4.2 dBi for 2.4GHz, 5.0 dBi for 5 GHz PIFA 6GHz antenna: 5.1 dBi for 6GHz band PFA BLE antenna: 3.4 dBi for 2.4GHz |
| Frequency Bands (GHz) | 2.4GHz Band: ISM 2.4-2.484GHz 5.0GHz Band: UNII-1 5.15-5.25GHz, UNII-2A 5.25-5.35GHz, UNII-2C 5.47-5.73GHz, UNII-3 5.725-5.85GHz, UNII-4 5.85-5.895GHz 6GHz Band: UNII-5 5.925-6.425GHz, UNII-6-6.425-6.525GHz, UNII-7 6.525-6.875, UNII-8 6.875-7.125GHz |
| Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 2 Capabilities | Frequency band: : 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 16/64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
| Radio 3 Capabilities | Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 16/64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
| Maximum Data Rate | 2.4GHz band: up to 688 Mbps 5.0GHz band: up to 2.882 Gbps 6.0GHz band: up to 5.765 Gbps |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertizement @10 dBm max TX power |
| GNSS | GPS L1 C/A: 1575.42 MHz, GLONASS L1: 1598.0625–1605.375 MHz BeiDou : 1561.098 MHz, Galileo E1: 1575.42 MHz |
| Interfaces | x1 100M/1000M/2.5G/5.0G Multigigabit Ethernet (RJ45) x1 RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | x1 802.3at PoE default |
| Simultaneous SSIDs | Up to 24 |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist |
| Maximum Tx Power (Conducted) | 2.4GHz band: 26 dBm/400 mW (2 chains combined* 5.0GHz band: 23 dBm/200 mW (2 chains combined)* 6.0GHz band: 22 dBm/158 mW (2 chains combined@320MHz BW)* |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3af, 802.3at, 802.3bt, 802.3az, 802.1Q, 802.11u, 802.11w, 802.11bz |
| SSIDs Supported | Local-Bridge, Mesh, and Tunnel |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2, and Radio3) |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| OFDMA | Yes |
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS | No |
| Onboard Security Functions | |
| UTP Capable | In Progress |
| UTP Features | To be confirmed |
| Wireless Monitoring Capabilities | |
| Rogue Scan radio modes | Background, Dedicated |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 6.88 x 6.88 x 2.2 inches (175 x 175 x 56 mm) |
| Weight | 2.22 lbs (1.01 kg) |
| Package (shipping) Weight | 2.85 lbs (1.29 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Standard Mounting Kit for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | 802.3bt PoE: GPI-145 or 802.3at PoE: GPI-130 or 12V, 2.5A, 30 Watt DC power supply SP-FAP200-PA-XX |
| Power Consumption (Maximum) | 15.2 W - PoE input 14.3 W - 12V DC power supply |
| PoE Mode | 1. 802.3at: Tx Power - Full, 2x2 MIMO 2. 802.3af : Tx Power- Full, 1x1 MIMO |
| Humidity | 5% - 90% non condensing |
| Operating / Storage Temperature | 32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C) |
| Directives | Low Voltage Directive* RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | > 10 Years |
| IP Rating | N/A |
| Surge Protection Built In | N/A |
| Hit-less PoE Failover | N/A |
| Certifications | |
| WiFi Alliance Certified | Certified (Wi-Fi7 in progress) |
| DFS | In Progress |
| Warranty | |
| Limited Lifetime Warranty | Yes |
Note: * Frequency selection, power, and some communication features may be restricted to abide by regional regulatory compliance laws.
Documentation:
Download the FortiAP Series Data Sheet (PDF).
Pricing Notes:
- All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
- 24x7 FortiCare Contract
24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
