Fortinet FortiSwitch 124G
Enterprise-Grade Protection for Smaller Networks

Fortinet FortiSwitch 124G


Fortinet Products
FortiSwitch 124GBack to top
Layer 2 FortiGate switch controller compatible switch with 24x 2.5G/1G/100M/10M RJ45 and 6x 10G/1G SFP+/SFP ports, and 1x RJ45 console port. Fanless.
#FS-124G
Our Price: Request a Quote
Licenses Back to top
FortiEdge Cloud Management License*
FC-10-FSW00-628-02-DD FortiSwitch 100 Series (No FSW Rugged Models)
FortiEdge Cloud Management SKU Including FortiCare Premium (Note, FortiCare only applicable when used with FortiEdge Cloud).
#FC-10-FSW00-628-02-DD
Our Price: Request a Quote
FortiEdge Cloud Management License*
FC-10-FSW10-628-02-DD FortiSwitch 200-400 Series (incl all FSW Rugged Models)
FortiEdge Cloud Management SKU Including FortiCare Premium (Note, FortiCare only applicable when used with FortiEdge Cloud).
#FC-10-FSW10-628-02-DD
Our Price: Request a Quote
FortiSwitch Manager Subscription License
FC1-10-SWMVM-258-01-DD Subscription license for 10 FortiSwitch Units managed by FortiSwitchManager VM.
24x7 FortiCare support (for FSWM VM) included.
#FC1-10-SWMVM-258-01-DD
Our Price: Request a Quote
FortiSwitch Manager Subscription License
FC2-10-SWMVM-258-01-DD Subscription license for 100 FortiSwitch Units managed by FortiSwitchManager VM.
24x7 FortiCare support (for FSWM VM) included.
#FC2-10-SWMVM-258-01-DD
Our Price: Request a Quote
FortiSwitch Manager Subscription License
FC3-10-SWMVM-258-01-DD Subscription license for 1000 FortiSwitch Units managed by FortiSwitchManager VM.
24x7 FortiCare support (for FSWM VM) included.
#FC3-10-SWMVM-258-01-DD
Our Price: Request a Quote
FortiSwitch Advanced Features License
FS-SW-LIC-200 SW License for FS-200 Series Switches to activate Advanced Features.
#FS-SW-LIC-200
Our Price: Request a Quote
Accessories Back to top
External Redundant AC Power Supply
Redundant AC power supply for up to two units: FS-224D-FPOE, FS-224E-POE, FS-248E-POE, FS-248E-FPOE.
#FRPS-740
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Live Demo! Click here to load

Overview:

Security, Ease of Use, and Scalability

The FortiSwitch™ Access Family is tailored to meet the unique demands of enterprise branch offices and small businesses. An unparalleled combination of security, ease of use, and scalability makes FortiSwitch™ the ideal choice for Ethernet infrastructure

Secure Networking Through FortiLink

FortiLink is an innovative proprietary management protocol that enables seamless integration and management between a FortiGate Next-Generation Firewall and the FortiSwitch Ethernet switching platform. By using FortiLink, the FortiSwitch becomes a logical extension of the FortiGate, allowing for centralized management of both network security and access layer functions through a single interface

Easy-to-use Network Access Control (NAC) at No Cost

FortiLink integration enables basic NAC functionality to profile and securely onboard devices as they connect. FortiLink NAC offers visibility into all connected devices, automated segmentation and security policies for IoT devices, quarantine if compromised, and virtual patching to help protect against threats.

Secure Access Service Edge (SASE)

This FortiSwitch enterprise architecture offers a built-in foundation for zero-trust network access (ZTNA) and secure access service edge (SASE), offering the flexibility to easily deploy the type and level of security you need at the edge of your network.

Software:

Operational Simplicity

Deploying, managing, and perfecting an Ethernet switching infrastructure can be challenging and time-consuming, particularly when done remotely or with limited staff.

FortiSwitch switching architecture can be securely deployed and managed in minutes through zero-touch deployment. Whether FortiSwitch is deployed in standalone mode or FortiLink mode, its easy-to-use intuitive workflows and unified views let you provision, manage, and optimize your small business or remote branches at scale.

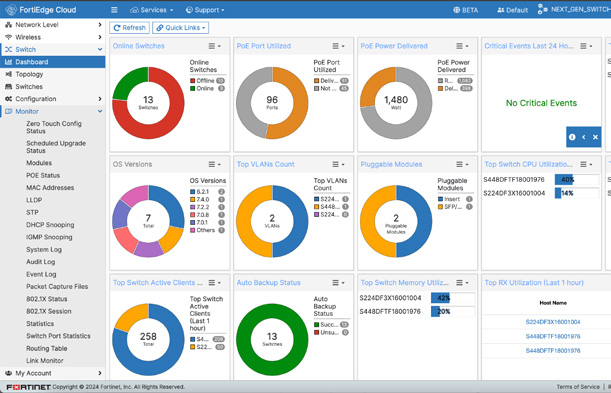

Whether cloud or on-premises, centralized management delivers a unified view of the LAN, security, and in the case of SD-Branch: SD-WAN and 5G wireless gateways. This feature provides a consistent user experience for optimal operational efficiency, simplifying management, optimization, and troubleshooting. The result is a shorter mean time to repair both network and security issues.


FortIOS

Scalable and Flexible for Branches or Small Business

FortiSwitch access architecture scales to meet the need of today’s small business and remote branches without sacrificing security. Supporting up to 48 ports in a compact 1 RU form factor, FortiSwitch can deliver the performance and scale you require.

Specifications:


FortiSwitch 110G-FPOE FortiSwitch 124G FortiSwitch 124G-FPOE
Hardware Specifications
Total Network Interfaces 2x 5G/2.5G/1G/100M
8x 2.5G/1G/100M/10M RJ45
4x 10G/1G/100 SFP+/SFP		 24x 2.5G/1G/100M/10M
6x 10G/1G SFP+/SFP		 24x 2.5G/1G/100M/10M
6x 10G/1G SFP+/SFP
Dedicated Management 10/100 Port 1 — —
RJ-45 Serial Console Port 1 1 1
Form Factor Desktop 1 RU Rack Mount 1 RU Rack Mount
Power over Ethernet (PoE) Ports 2x 5G with PoE bt
8x 2.5G with PoE af/at		 — 8x PoE bt
16x PoE af/at
PoE Power Budget 200 W — 780 W
Mean Time Between Failures > 10 years > 10 years > 10 years
System Specifications
Switching Capacity (Duplex) 140 Gbps 240 Gbps 240 Gbps
Packets Per Second (Duplex) 208 Mpps 355 Mpps 355 Mpps
MAC Address Storage 32k 32k 32k
Network Latency < 1µs < 1µs < 1µs
VLANs Supported 4k 4k 4k
Link Aggregation Group Size 10 8 8
Total Link Aggregation Groups 12 16 16
Packet Buffers 2MB 2MB 2MB
Memory 1GB DDR4 1GB DDR4 1GB DDR4
Flash 8MB NOR 256MB NAND 256MB NAND
ACL 640 640 640
Spanning Tree Instances 32 32 32
Dimensions
Height x Depth x Width (inches) 1.71 x 10.63 x 8.97 1.71 x 12.2 x 17.3 1.71 x 12.2 x 17.3
Height x Depth x Width (mm) 44 x 270 x 228 44 x 310 x 440 44 x 310 x 440
Weight 4.05 lbs (1.84 kg) 8.75 lbs (3.97 kg) 10.72 lbs (4.86 kg)
Environment
Power Required 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Power Supply 100V-240VAC/54V DC power adapter included AC built in AC built in
Redundant Power No No No
Power Consumption 250W 43.5W 880W
Heat Dissipation 102.36 BTU/h 148.4 BTU/h 194.8 BTU/h
Operating Temperature 32°F to 113°F (0°C to 45°C) 23°F to 113°F (-5°C to 45°C) 23°F to 113°F (-5°C to 45°C)
Storage Temperature -49°F to 158°F (-40°C to 70°C) -49°F to 158°F (-40°C to 70°C) -49°F to 158°F (-40°C to 70°C)
Humidity 5% to 95% RH non-condensing 5% to 95% RH non-condensing 5% to 95% RH non-condensing
Air-Flow Direction side to back/top side-to-back side-to-back
Noise Level Fanless Fanless 48.2 dBA
Certification and Compliance
Compliance FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 FCC, ICES, CE, UKCA, RCM, VCCI, BSMI, UL, CB, RoHS2 FCC, ICES, CE, UKCA, RCM, VCCI, BSMI, UL, CB, RoHS2
Ingress Protection IP30 IP20 IP20
Warranty
Fortinet Warranty Limited lifetime* warranty on all models

Documentation:

Download the Fortinet FortiSwitch 124G Series Data Sheet (PDF).
