Fortinet FortiSwitch 124E-POE
Secure Access Switches
with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control
Click here to jump to more pricing!
Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
Overview:
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.
Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Security Fabric Integration
Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate.
This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.
In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.
Simplify Network Deployment
The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.
Highlights
- Secure Access switches suitable for wire closet and desktop installations
- Devices are identified and users authenticated prior to being granted access to the network
- Centralized security management and reporting from FortiGate interface
- Up to 48 ports in a compact 1 RU form factor
- Stackable up to 256 switches per FortiGate depending on model
- Power over Ethernet capable, including PoE+
- Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
Features
| Management and Configuration | |
|---|---|
| Auto Discovery of Multiple Switches | Yes |
| Number of Managed Switches per FortiGate | 8 to 256 Depending on FortiGate Model (Please refer to admin guide) |
| FortiLink Stacking (Auto Inter-Switch Links) | Yes |
| Software Upgrade of Switches | Yes |
| Centralized VLAN Configuration | Yes |
| Switch POE Control | Yes |
| Link Aggregation Configuration | Yes |
| Spanning Tree | Yes |
| LLDP/MED | Yes |
| IGMP Snooping | Yes (not supported on 1xxE-Series) |
| L3 Routing and Services | Yes (FortiGate) |
| Policy-Based Routing | Yes (FortiGate) |
| Virtual Domain | Yes (FortiGate) |
| Security and Visibility | |
| 802.1x Authentication (Port-based, MAC-based, MAB) | Yes |
| Syslog Collection | Yes |
| DHCP Snooping | Yes |
| Device Detection | Yes |
| MAC Black/While Listing | Yes (FortiGate) |
| Policy Control of Users and Devices | Yes (FortiGate) |
| UTM Features | |
| Firewall | Yes (FortiGate) |
| IPC, AV, Application Control, Botnet | Yes (FortiGate) |
| High Availability | |
| Support FortiLink FortiGate in HA Cluster | Yes |
| LAG support for FortiLink Connection | Yes |
| Active-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy | Yes (with FS-2xx, 4xx, 5xx) |

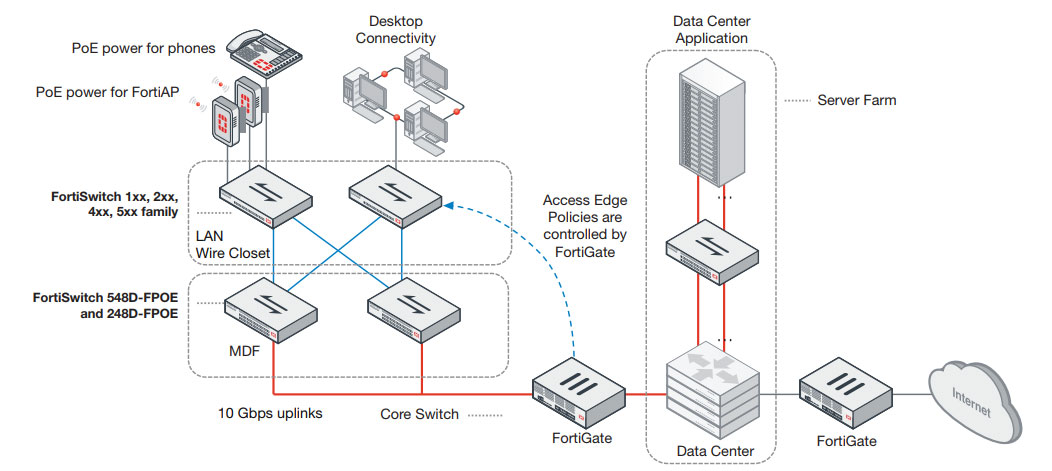

Deployment

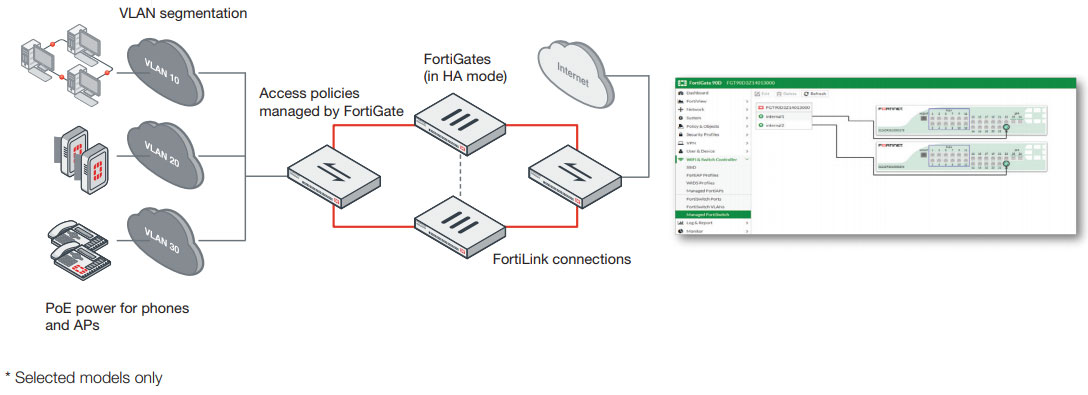

Fortilink Mode
The FortiSwitch Secure Access Switch series integrates directly into the FortiGate* Connected UTM, with switch administration and access port security managed from the familiar FortiGate interface. Regardless of how users and devices connect to the network, you have complete visibility and control over your network security and access through this single pane of glass, perfectly suited to threatconscious organizations of any size.
Standalone Mode
Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements in the data center, pushing the limits of existing data center switching. FortiSwitch Data Center switches meet these challenges by providing a high performance 10 or 40 GE capable switching platform, with a low Total Cost of Ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as enterprise network core or distribution deployments, these switches are purpose-built to meet the needs of today's bandwidth intensive environments.
Specifications:
| FortiSwitch 124E-POE | FortiSwitch 124E-FPOE | |
|---|---|---|
| Hardware Specifications | ||
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP | 24x GE RJ45 and 4x GE SFP |
| Dedicated Management 10/100 Port | 0 | 0 |
| RJ-45 Serial Console Port | 1 | 1 |
| Form Factor | 1 RU Rack Mount | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 12 (802.3af/at) | 24 (802.3af/at) |
| PoE Power Budget | 185 W | 370 W |
| Mean Time Between Failures | > 10 years | > 10 years |
| System Specifications | ||
| Switching Capacity | 56 Gbps | 56 Gbps |
| Packets Per Second | 41.66 Mpps | 41.66 Mpps |
| MAC Address Storage | 8K | 8K |
| Network Latency | 4ms | 4ms |
| VLANs Supported | 4K | 4K |
| Link Aggregation Group Size | 8 | 8 |
| Total Link Aggregation Groups | 8 | 8 |
| Packet Buffers | 512 KB | 512 KB |
| DRAM | 256 MB DDR3 | 256 MB DDR3 |
| FLASH | 32 MB | 32 MB |
| Dimensions | ||
| Height x Depth x Width (inches) | 1.7 x 12.2 x 17.3 | 1.7 x 12.2 x 17.3 |
| Height x Depth x Width (mm) | 44 x 309 x 440 | 44 x 309 x 440 |
| Weight | 11.1 lbs (5.03 kg) | 11.2 lbs (5.03 kg) |
| Environment | ||
| Power Required | 100-240V AC, 50-60 Hz | 100-240V AC, 50-60 Hz |
| Power Supply | AC Built in | AC Built in |
| Redundant Power | 17.78 W / 20.45 W | 17.78 W / 20.45 W |
| Power Consumption (Average / Maximum) | 60.67 BTU/h | 60.67 BTU/h |
| Heat Dissipation | 60.67 BTU/h | 60.67 BTU/h |
| Operating Temperature | 32-104°F (0-40°C) | 32-104°F (0-40°C) |
| Storage Temperature | -40-158°F (-40-70°C) | -40-158°F (-40-70°C) |
| Humidity | 10-90% non-condensing | 10-90% non-condensing |
| Certification and Compliance | ||
| FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 | |
| Warranty | ||
| Limited lifetime* warranty on all models | Limited lifetime* warranty on all models | |
Documentation:
Download the Fortinet FortiSwitch Secure Access Series Datasheet (PDF).
