Fortinet FortiGate 80D
High Performance UTM for Small Networks

Fortinet FortiGate 80D

Sorry, this product is no longer available, and replaced by the new FortiGate-80E, click here. If you currently own a FortiGate 80D, services and support can be purchased below.

Click here to jump to more pricing!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

The FortiGate-80D is compact, cost effective, all-in-one security appliances that deliver Fortinet's Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.

High Performance Network Security

Built on the foundation FortiOS 5, the FortiGate-80D series provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that's easy to deploy and manage. With our FortiGuard® security subscription services you'll have automated protection against today's sophisticated threats.

Advanced Features

The FortiGate-80D offers beyond the industry's best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

VDOMs on the FortiGate-80D, let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.

With 16 GB of robust internal storage, the FortiGate-80D allows you to implement integrated WAN optimization and web caching to improve user productive when securely accessing remote applications and document.

Enterprise-Class Protection that's Easy to Deploy and Manage

  • High performance UTM - firewall, VPN, IPS, application control, web filtering, antivirus, antispam, DLP and more
  • Runs on FortiOS 5 - the most powerful security operating system in the world delivers more protection for fighting advanced threats and visibility with deep contextual information
  • Reliable internal storage for logging, reporting, web caching and WAN Optimization
Key Features & Benefits
Unified Security Multi-threat protection from a single device increases security and lowers costs
Simplified Licensing Unlimited user licensing and comprehensive features
Built-in Storage Allows implementation of WAN optimization and web cache, as well as extensive internal logging and reporting.

Hardware:

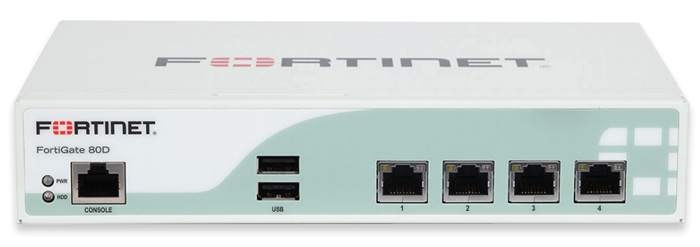

FortiGate 80D

FortiGate 80D

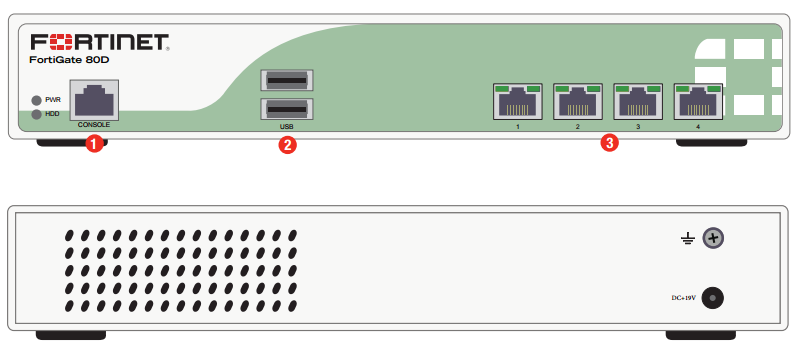

Interfaces

  1. Console Port
  2. 2x USB Ports
  3. 4x GE RJ45 Ports

Install in Minutes with FortiExplorer

The FortiExplorer wizard enables easy setup and configuration coupled with easy-to-follow instructions. FortiExplorer runs on both Microsoft Windows and Mac OS X computers as well as popular mobile devices like Android and iOS. Using FortiExplorer is as simple as starting the application and connecting to the appropriate USB port on the FortiGate. By using FortiExplorer, you can be up and running and protected in minutes.

Wireless and 3G/4G WAN Extensions

The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.

Compact and Reliable Form Factor

Designed for small environments, you can simply place the FortiGate 80D on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

FortiOS

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

  • Real-time Updates - 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
  • Security Research - FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
  • Validated Security Intelligence - Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

  • Enhanced Support - For customers who need support during local business hours only.
  • Comprehensive Support - For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
  • Advanced Services - For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
  • Professional Services - For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:


FortiGate 80D Specifications
Hardware Specifications
GE RJ45 Ports 4
USB Ports 2
Console (RJ45) 1
Internal Storage 16 GB
System Performance
Firewall Throughput 1.3 Gbps
Firewall Latency (64 byte UDP packets) 90 μs
Firewall Throughput (Packets Per Second) 255 Kpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 22,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 200 Mbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 1,000
SSL-VPN Throughput 130 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 200
IPS Throughput (HTTP / Enterprise Mix) 1 800 / 245 Mbps
SSL Inspection Throughput 2 210 Mbps
Application Control Throughput 3 300 Mbps
NGFW Throughput 4 210 Mbps
Threat Protection Throughput 5 190 Mbps
CAPWAP Throughput 6 1.1 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.61 x 8.27 x 5.24
Height x Width x Length (mm) 41 x 210 x 133
Weight 2.3 lbs (1.1 kg)
Form Factor Desktop
Environment
Power Required 100-240V AC, 50-60 Hz
Maximum Current 110 V / 1.2 A, 220 V / 1.2 A
Power Consumption (Average / Maximum) 18 / 22 W
Heat Dissipation 74 BTU/h
Operating Temperature 32-104°F (0-40°C)
Storage Temperature -31-158°F (-35-70°C)
Humidity 20-90% non-condensing
Operating Altitude Up to 16,404 ft (5,000 m)
Compliance
Safety FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Documentation:

Download the Fortinet FortiGate 80D Series Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Fortinet Products
FortiGate-80D 24x7 Unified Threat Protection (UTP)
FortiGate-80D 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and 24x7 FortiCare)
#FC-10-0080D-950-02-12
List Price: £830.87
Our Price: Request a Quote
FortiCloud Management, Analysis and Log Retention
FortiGate-80D 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0080D-131-02-12
List Price: £237.64
Our Price: Request a Quote
24x7 FortiCare Contract
FortiGate-80D 1 Year 24x7 FortiCare Contract
#FC-10-0080D-247-02-12
List Price: £237.64
Our Price: Request a Quote
FortiGate-80D Services
1 Year FortiGuard IPS Service for FortiGate-80D
#FC-10-0080D-108-02-12
List Price: £237.64
Our Price: Request a Quote
FortiGate-80D 1 Year FortiGuard Industrial Security Service
#FC-10-0080D-159-02-12
List Price: £237.64
Our Price: Request a Quote
FortiGate-80D 1 Year Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
#FC-10-0080D-100-02-12
List Price: £237.64
Our Price: Request a Quote
FortiGate-80D 1 Year FortiGuard Web & Video Filtering Service
#FC-10-0080D-112-02-12
List Price: £356.45
Our Price: Request a Quote
Fortinet FortiGate-80D Threat Protection
FortiGate-80D 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and 24x7 FortiCare)
#FC-10-0080D-928-02-12
List Price: £533.82
Our Price: Request a Quote
Fortinet FortiGate-80D Fortiguard Security Audit Update Service
FortiGate-80D 1 Year FortiGuard Security Rating Service
#FC-10-0080D-175-02-12
List Price: £237.64
Our Price: Request a Quote
Fortinet FortiGate-80D ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
FortiGate-80D 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0080D-284-02-12
List Price: £297.05
Our Price: Request a Quote
Fortinet FortiGate-80D Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, Industrial Security, Security Rating, and FortiConverter Svc)
FortiGate-80D 1 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web Filtering, Antispam, Security Rating, Industrial Security, FortiConverter Svc, and 24x7 FortiCare)
#FC-10-0080D-810-02-12
List Price: £1,008.23
Our Price: Request a Quote
