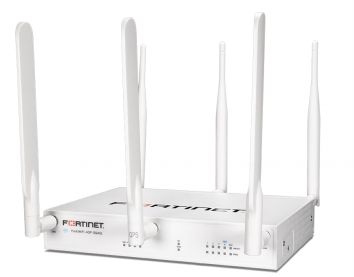

Fortinet FortiGate 40F-3G4G
Next Generation Firewall Secure SD-WAN

Fortinet FortiWifi 40F-3G4G

Fortinet Products

FortiGate-40F-3G4G

5 x GE RJ45 ports (including 1 x WAN Port, 4 x Internal Ports) with Embedded 3G/4G/LTE wireless wan module, 2 external SMA WWAN antennas included

#FG-40F-3G4G
List Price: £952.27
Our Price: Request a Quote

Fortinet FortiGate-40F-3G4G Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

FortiGate-40F-3G4G Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

#FG-40F-3G4G-BDL-950-12
List Price: £1,618.85
Our Price: Request a Quote

FortiGate-40F-3G4G Hardware plus 3 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

#FG-40F-3G4G-BDL-950-36
List Price: £2,952.02
Our Price: Request a Quote

FortiGate-40F-3G4G Hardware plus 5 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

#FG-40F-3G4G-BDL-950-60
List Price: £4,285.20
Our Price: Request a Quote

FortiGate-40F-3G4G Hardware plus 24x7 FortiCare and FortiGuard SMB Protection

FortiGate-40F-3G4G Hardware plus 1 Year 24x7 FortiCare and FortiGuard SMB Protection

#FG-40F-3G4G-BDL-879-12
Our Price: Request a Quote

Get a Quote

FortiGate-40F-3G4G Hardware plus 3 Year 24x7 FortiCare and FortiGuard SMB Protection

#FG-40F-3G4G-BDL-879-36
Our Price: Request a Quote

Get a Quote

FortiGate-40F-3G4G Hardware plus 5 Year 24x7 FortiCare and FortiGuard SMB Protection

#FG-40F-3G4G-BDL-879-60
Our Price: Request a Quote

Get a Quote

Fortinet FortiGate-40F-3G4G Hardware plus 24x7 FortiCare and FortiGuard Enterprise Protection

FortiGate-40F-3G4G Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection

#FG-40F-3G4G-BDL-811-12
List Price: £1,761.69
Our Price: Request a Quote

FortiGate-40F-3G4G Hardware plus 3 Year 24x7 FortiCare and FortiGuard Enterprise Protection

#FG-40F-3G4G-BDL-811-36
List Price: £3,380.54
Our Price: Request a Quote

FortiGate-40F-3G4G Hardware plus 5 Year 24x7 FortiCare and FortiGuard Enterprise Protection

#FG-40F-3G4G-BDL-811-60
List Price: £4,999.40
Our Price: Request a Quote

Fortinet FortiGate-40F-3G4G Hardware plus ASE FortiCare and FortiGuard 360 Protection

A FortiCloud Premium Account License is required to use FortiManager Cloud and FortiAnalyzer Cloud. See FortiCloud.

FortiGate-40F-3G4G Hardware plus 1 Year ASE FortiCare and FortiGuard 360 Protection

#FG-40F-3G4G-BDL-841-12
Our Price: Request a Quote

Get a Quote

FortiGate-40F-3G4G Hardware plus 3 Year ASE FortiCare and FortiGuard 360 Protection

#FG-40F-3G4G-BDL-841-36
Our Price: Request a Quote

Get a Quote

FortiGate-40F-3G4G Hardware plus 5 Year ASE FortiCare and FortiGuard 360 Protection

#FG-40F-3G4G-BDL-841-60
Our Price: Request a Quote

Get a Quote

Click here to jump to more pricing!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

The Fortinet Enterprise Firewall Solution

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

Delivers industry's best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
Provides industry-leading performance and protection for SSL encrypted traffic

Certification

Independently tested and validated best security effectiveness and performance
Received unparalleled third-party certifications from NSS Labs

Networking

Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility.
Provides Zero Touch Integration with Security Fabric's Single Pane of Glass Management
Predefined compliance checklist analyzes the deployment and highlights the best practices to improve overall security posture

Security Fabric

Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation

Firewall	IPS	NGFW	Threat Protection	Interfaces
5 Gbps	1 Gbps	800 Mbps	600 Mbps	Multiple GE RJ45 \| WiFi variants \| 3G4G/LTE

Hardware:

FortiGate / FortiWifi 40F 3G4G

FortiGate 40F-3g4G Hardware

Interfaces

1x USB Port
1x Console Port
1x GE RJ45 WAN Port
1x GE RJ45 FortiLink Port
3x GE RJ45 Ethernet Ports

Powered by Purpose-builtSecure SD-WAN ASIC SOC4

Combines a RISC-based CPU with Fortinet's proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
Delivers industry's fastest application identification and steering for efficient business operations
Accelerates IPsec VPN performance for best user experience on direct internet access
Enables the best of breed NGFW Security and Deep SSL Inspection with high performance
Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity

3G/4G WAN Extensions

The FortiGate/FortiWiFi 40F-3G4G Series includes built-in 3G4G/LTE modem that allows additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Secure Access Layer

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Specifications:

	FORTIGATE 40F-3G4G	FORTIWIFI 40F-3G4G
Interfaces and Modules
Hardware Accelerated GE RJ45 WAN Ports	1
Hardware Accelerated GE RJ45 Internal Ports	3
Hardware Accelerated GE RJ45 FortiLink Ports	1
Cellular Modem	3G4G / LTE
Wireless Interface	-	Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2
Antenna Ports (SMA)	3	6
USB Ports	1
SIM Slots (Nano SIM)	2
Console (RJ45)	1
Internal Storage	-
System Performance - Enterprise Traffic Mix
IPS Throughput	1 Gbps
NGFW Throughput	800 Mbps
Threat Protection Throughput	600 Mbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5/5/5 Gbps
Firewall Latency (64 byte UDP packets)	2.97 μs
Firewall Throughput (Packets Per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	320
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	55,000
Application Control Throughput (HTTP 64K)	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	16 / 8
Maximum Number of FortiTokens	500
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.6 x 8.5 x 6.3
Height x Width x Length (mm)	40.5 x 216 x 160
Weight	2.2 lbs (1 kg)
Form Factor	Desktop
Power Required	Powered by external DC power adapter 100-240V AC, 50/60 Hz
Current (Maximum)	100V AC / 0.3A, 240V AC / 0.2A
Power Consumption (Average / Maximum)	15.8 W / 18.6 W	18.6 W / 19.8 W
Heat Dissipation	63.5 BTU/h	67.6 BTU/h
Operating Environment and Certifications
Operating Temperature	32-104°F (0-40°C)
Storage Temperature	-31-158°F (-35-70°C)
Humidity	10-90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Radio Specifications
Multiple (MU) MIMO	-	3x3
Maximum Wi-Fi Speeds	-	1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power	-	20 dBm
Antenna Gain	-	3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz

Fortinet Fabric Security:

Fabric Security

Security Fabric

The industry's highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.

Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users
Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem
Automated: Context aware, self-healing network & security posture leveraging cloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across the Fabric

FortiOS™ Operating System

FortiOS, Fortinet's leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric's ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.

Services

FortiGuard™ Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.

FortiCare™ Services

Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.

Documentation:

Download the Fortinet FortiGate 40F-3G4G Series Data Sheet (PDF).

Pricing Notes:

All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
Pricing and product availability subject to change without notice.
