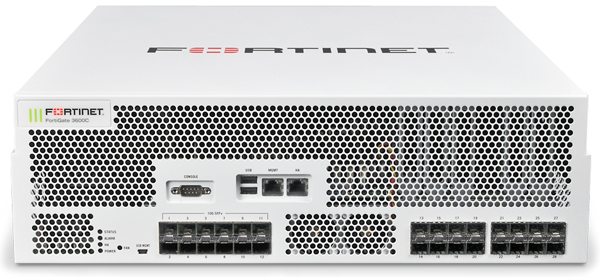

Fortinet FortiGate 3600C
World's Most Advanced Next Generation Firewall
Sorry, this product is no longer available. Please Contact Us for a replacement.
The Next Generation Firewall FortiGate-3600C delivers consolidated, fully integrated unified threat management for large enterprises and managed service providers. Accelerated security throughput, high port density and ease of management capabilities makes it ideal for your most demanding network environments. With numerous accelerated multi-threat security interfaces, you can create multiple security zones for various departments, users, access methods, and even devices to enforce network security at accelerated speeds. An integrated set of essential security technologies protects all of your applications and data.
The FortiGate-3600C next generation firewall, with exceptional performance, deployment flexibility and security features, is designed to protect the most demanding network environments. Purpose-built by Fortinet, the FortiGate-3600C delivers superior performance through a combination of custom hardware, including FortiASIC™ processors, high port density, and consolidated security features from the FortiOS™ operating system.
Whether protecting your data center and network perimeter or deployed as part of a managed security service, the 30 high speed ports and 60 Gbps of firewall throughput make the FortiGate-3600C next generation firewall ideal for securing high bandwidth networks.
FortiGate-3600C Features & Benefits:
- 60 Gbps firewall performance and sub-4 microsecond latency ensures optimal performance for latency sensitive environments
- Advanced application control lets you define and enforce policies for thousands of applications running across networks regardless of port or the protocol used for communication
- Virtual private network (VPN) technology enforces complete content inspection and multi-threat protection. Traffic optimization prioritizes critical communications traversing VPN tunnels
- Over 4000 IPS signatures enables you to stop attacks that evade more conventional firewalls. Behavior-based heuristics recognize zero day threats for which no signature has been created.
- Data leakage prevention uses a sophisticated pattern-matching engine to help identify and prevent the transfer of sensitive information outside of network perimeters, even when applications encrypt their communications
- Available FortiManager and FortiAnalyzer appliances simplify security management and reduce operating expenses in multiple deployments
- FortiGuard Subscription Services deliver automated, real-time, up-to-date protection against security threats and exploits.
Security Beyond Next Generation Firewall
The FortiGate-3600C next generation firewall allows you to deploy the right blend of essential hardware-accelerated security technologies now and in the future to meet your evolving network requirements. These technologies include firewall, VPN, intrusion prevention and application control, all managed from a 'single pane of glass' management console.
Unlike other next generation firewalls, the FortiGate-3600C also includes additional security technologies such as antimalware, web content filtering and WAN optimization, allowing you to consolidate stand-alone devices. In addition, the FortiGate-3600C can be deployed as an enterprise class wireless controller and endpoint security manager.
The FortiASIC CP8 content processor works outside of the direct flow of traffic, providing high-speed cryptography and content inspection services including:
- Signature-based content inspection acceleration
- Encryption and decryption offloading
The FortiASIC NP4 network processor works inline with firewall and VPN functions delivering:
- Wire-speed firewall performance for any size packets
- VPN acceleration
- Anomaly-based intrusion prevention, checksum offload and packet defragmentation
- Traffic shaping and priority queuing
10G Connectivity for Core Infrastructure
High speed connectivity is essential for network security segmentation at the core of data networks. The FortiGate-3600C provides one of the highest 10G port densities in the market, simplifying network designs without relying on additional devices to bridge desired connectivity.
Powered by FortiASICs
- Custom FortiASIC™ processors deliver the power you need to detect malicious content at multi-Gigabit speeds
- Other security technologies cannot protect against today's wide range of content- and connection-based threats because they rely on generalpurpose CPUs, causing a dangerous performance gap
- FortiASIC processors provide the performance needed to block emerging threats, meet rigorous thirdparty certifications, and ensure that your network security solution does not become a network bottleneck
Unique Visibility and Control
FortiOS allows greater traffic visibility and more consistent, granular control over users, devices, applications and sensitive data. Dashboard widgets allow you to quickly view and understand real-time network activities and threat situations.
Ease of Use
FortiOS lowers operational costs and reduces IT staff workload. Single pane of glass management and centralized analysis ensure consistent policy creation and enforcement while minimizing deployment and configuration challenges.
Comprehensive Systems Integration
Integration with external systems are possible with wide range of interfacing protocols support and certified solution partners. You can rely on facilities such as SNMP, sFlow and syslog for monitoring purposes. Integration with provisioning systems and custom portals is possible with Web Service APIs via FortiManager. Scripting using various scripting languages is supported by manipulating CLI commands.
Proven with Industry Validation
FortiGate holds more industry certifications than competitive products, assuring feature quality and providing you best-of-breed protection.
Robust Virtual Systems
FortiOS Virtual Domains (VDOMs) is proven method of dividing a FortiGate unit/cluster into two or more virtual units that function as independent units. It has the industry's most comprehensive virtualization capabilities to meet today's complex MSSP deployments.
Identity Centric Enforcement
FortiOS supports both local and remote authentication services such as LDAP, Radius and TACACS+ to identify users and apply appropriate access policies and security profiles accordingly. It can simplify identity based implementations and provide a seamless user authorization experience with single sign-on capabilities. FortiOS has strong PKI and certificate-based authentication services while also integrating an internal two factor authentication server for additional security.
Extensive Network Support
FortiOS meets numerous network design requirements. A wealth of routing, multicasting and network resiliency protocols are supported for interoperating with other networking devices.
Superior IPS capabilities
Over 4000 IPS signatures enables you to stop attacks that evade more conventional firewalls. Behavior-based heuristics recognize zero day threats for which no signature has been created.
Advanced application control lets you define and enforce policies for thousands of applications running across networks regardless of port or the protocol used for communication.
Powerful Policy Management
Two types of policy management views - global and section view - are available to suit your preferences. Policy objects can be easily edited from the policy table. Available management features include policy object search, tagging, sorting and filtering.
With FortiManager integration, you have the ability to set up sophisticated policy implementation and provisioning workflows to meet compliance or operational requirements. FortiAnalyzer enables complete and accurate configuration audit trails to reside externally for secured storage.
Flexible Role-based Administration
Access profiles can be defined to provide granular access to VDOMs and system functionalities. This is valuable in facilitating compliant enterprise-class security operation workflows.
Beyond Next Generation Firewall Capabilities
FortiOS supports various value-adding components to the network that is unique in the market. This includes in-box token server, wireless controller and vulnerability scanner. These features simplify network design and deployment while also providing more secure implementations without incurring additional cost.
Broad IPv6 Support
Maintaining security for both IPv4 and IPv6 traffic will be crucial to the success of mixed networks. Malware and network threats are independent of IPv4 or IPv6. FortiOS is able to use IPv6 security policies to provide access control and FortiGuard Unified Threat Protection (UTP) for IPv6 traffic. FortiOS has been successfully evaluated as compliant with core protocol and interoperability tests defined by IPv6 Ready Logo Phase 2.
World-Class Technical Support and Documentation
Fortinet FortiCare support offerings provide comprehensive global support for all Fortinet products and services. You can rest assured your Fortinet security products are performing optimally and protecting your users, applications, and data around the clock.
Integrated Multi-Threat Protection
The FortiGate product family provides cost-effective, comprehensive protection against network, content, and application-level threats. It defends your environment from complex, sophisticated attacks without degrading network availability and affecting application performance.
FortiGate platforms combine the purpose-built FortiOS™ security operating system with custom FortiASIC processors and other hardware to provide a comprehensive and highperformance array of security and networking functions.
The FortiGate product family delivers the highest level of network, content, and application security for enterprises of all sizes, while reducing total cost of ownership. With Fortinet, you deploy the network security you need to protect your intellectual property, preserve the privacy of critical customer information, and maintain regulatory compliance.
FortiOS 5.0 Software
FortiOS 5.0, the world's most powerful security operating system, is the foundation for all Fortinet FortiGate integrated security platforms. It provides more security, intelligence and control to help enterprises be better protected against today's advanced threats and enable more secure BYOD environments.
|More Security Fighting Advanced Threats
More Security to fight advanced threats. A client reputation feature gives enterprises a cumulative security ranking of each device based on a range of behaviors and provides specific, actionable information that enables organizations to identity compromised systems and potential zero-day attacks in real time. The new advanced anti-malware detection system adds an on-device behavior-based heuristic engine and cloud-based AV services that includes an operating system sandbox and botnet IP reputation database. Together with superior industry-validated AV signatures, FortiOS 5.0 delivers unbeatable multi-layered protection against today's sophisticated malware.
|More Control Securing Mobile Devices
More Control to secure mobile devices and BYOD environments by identifying devices and applying specific access policies as well as ecurity profiles, according to the device type or device group, location and usage.
|More Intelligence Build Smart Policies
More Intelligence with automatic adjustment of role-based policies for users and guests based on location, data and application profile. Enhanced reporting and analysis also provides administrators with more intelligence on the behavior of their network, users, devices, applications and threats.
|FortiOS Security Services
Virtual Private Network (VPN)
User Authentication Options
Data Center Optimization
|Antivirus / Antispyware
High Availability (HA)
Virtual Domains (VDOMs)
|Intrustion Prevention System (IPS)
Data Loss Prevention (DLP)
Endpoint Compliance and Control

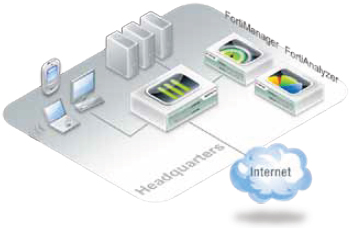

Next-Generation Perimeter Security
Firewalls alone aren't enough to block today's blended threats and attacks. Data centers require multi-layered security technologies that examine entire packet flows, from content inspection through re-assembly, to stop threats at the perimeter. The FortiGate-3600C offers critical perimeter security protection without compromising performance and scalability.

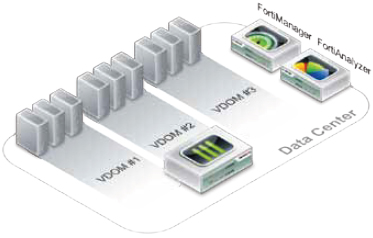

Data Center Core Security
Today's high-speed data centers require not only perimeter security but also network protection between various network segments at the core. The FortiGate-3600C meets the requirement as a security gateway with superior next generation firewall performance and features. High density 10G interfaces allow connectivity between the segments without the need of bridging devices.

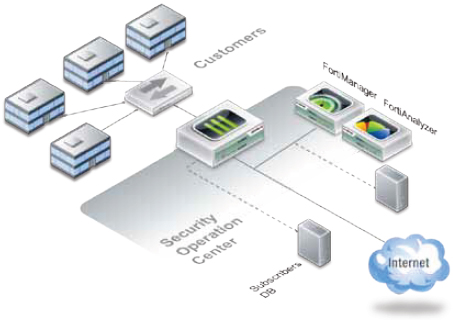

The FortiGate-3600C delivers comprehensive security for Managed Security Service Providers (MSSPs). The full suite of Fortinet integrated management applications - including granular reporting features - offer unprecedented visibility into the security posture of customers while identifying their highest risks.

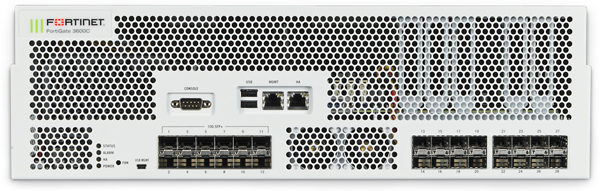

|Interfaces & Modules
|Hardware Accelerated 10-GbE/GbE SFP+ Slots
|Hardware Accelerated GbE SFP Slots
|GbE Copper Ports
|USB Interface for FortiExplorer
|RJ-45 Console Port
|1 (DB9 Interface)
|System Performance & Capacity
|Firewall Throughput (1518 / 512 / 64 byte, UDP)
|60 / 60 / 60 Gbps
|Firewall Latency (64 byte UDP packets)
|Firewall Throughput (Packets Per Second)
|Concurrent Sessions (TCP)
|New Sessions/Sec (TCP)
|IPSec VPN Throughput (512 byte packets)
|Gateway-to-Gateway IPSec VPN Tunnels
|Client-to-Gateway IPSec VPN Tunnels
|Concurrent SSL-VPN Users (Recommended Max)
|Antivirus Throughput (Proxy Based / Flow Based)
|5.8 / 18 Gbps
|Virtual Domains (Default / Max)
|10 / 500
|Max Number of FortiAPs
|Max Number of FortiTokens
|High Availability Configurations
|Active-Active, Active-Passive, Clustering
|Dimensions and Power
|Height x Width x Length
|5.24 x 9.65 x 21.65 (133 x 245 x 550 mm)
|48.70 lb (22.08 kg)
|3 RU, Ears + Rails
|AC Power Supply
|100 - 240 VAC, 50-60 Hz, 110V/6A, 220V/3A
|Power Consumption (Avg / Max)
|512 / 615 W
|Redundant Power Supplies
|Yes, Hot Swappable
|32 - 104 deg F (0 - 40 deg C)
|-31 - 158 deg F (-35 - 70 deg C)
|20 to 90% non-condensing
|Compliance & Certification
|FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
|ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN
Note: All performance values are "up to" and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.
Services & Support:
FortiGuard Security Subscription Services
FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.
FortiCare Support Services
FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and a 90-day limited software warranty.
Download the Fortinet FortiGate 3600C Datasheet (PDF).
- All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
- Hardware plus ASE FortiCare and FortiGuard 360 Protection
Hardware unit, 24x7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 360 Services Bundle (SD-WAN Orchestrator, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Controller VPN, FortiManager Cloud, FortiAnalyzer Cloud, Fortinet SOCaaS, IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security and FortiConverter Service) plus term of contract
- Hardware plus 24x7 FortiCare and FortiGuard Enterprise Protection
Hardware Unit, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Hardware Unit, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
- 360 Protection (SD-WAN Orchestrator, SD-WAN Cloud Monitoring, FMG/FAZ Cloud, IPAM, IPS, AMP, App Ctrl, Web & Video Filtering, AS, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and ASE FortiCare)
24x7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 360 Services Bundle (SD-WAN Orchestrator, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Controller VPN, FortiManager Cloud, FortiAnalyzer Cloud, Fortinet SOCaaS, IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security and FortiConverter Service)
- Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and 24x7 FortiCare)
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
- Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and 24x7 FortiCare)
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
- Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and 24x7 FortiCare)
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
- 24x7 FortiCare Contract
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
- ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
24x7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control.
- Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
