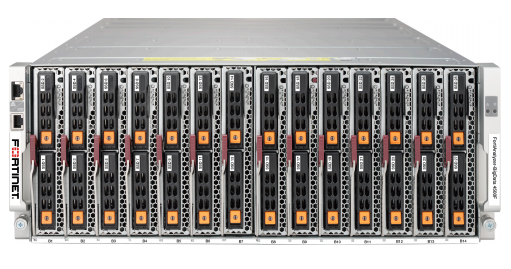

Fortinet FortiAnalyzer Big Data 4500F Appliance
Security-Driven Analytics & Log Management

Fortinet FortiAnalyzer Big Data 4500F Appliance

Fortinet Products
FortiAnalyzer-Big Data 4500F
FortiAnalyzer high-performance chassis for big data analytics with 14 blade servers, 4x 40-Gbps QSFP Ports, 8x 10Gbps SFP+ Ethernet Ports, 300,000 logs/sec ingestion rate, and 199TB SSD storage in a single system. Horizontally scalable up to petabytes of storage.
#FAZ-BD-4500F
List Price: £337,968.33
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Hardware plus 24x7 FortiCare and FortiAnalyzer Enterprise Protection
FortiAnalyzer-BigData-4500F Hardware plus 1 Year 24x7 FortiCare and FortiAnalyzer Enterprise Protection
#FAZ-BD-4500F-BDL-466-12
List Price: £642,139.83
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F Hardware plus 3 Year 24x7 FortiCare and FortiAnalyzer Enterprise Protection
#FAZ-BD-4500F-BDL-466-36
List Price: £1,250,482.82
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F Hardware plus 5 Year 24x7 FortiCare and FortiAnalyzer Enterprise Protection
#FAZ-BD-4500F-BDL-466-60
List Price: £1,858,825.82
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

The FortiAnalyzer BigData 4500F delivers high-performance big data network analytics for large and complex networks. It is designed for large-scale data center and high-bandwidth deployments, offering the most advanced cyber threat protection by employing hyperscale data ingestion and accelerated parallel data processing. Together with its new distributed software and hardware architecture and Fortinet's high performance next generation firewalls, this powerful 4RU chassis offers blazing fast performance, enterprise-grade data resiliency, built-in horizontal scalability, and consolidated appliance management.

High Performance

  • Totally redesigned and optimized architecture, employing the newest Big Data Kafka/Hadoop/Spark technologies
  • Massive Parallel event streaming and data processing for highspeed ingestion, data storage and search capabilities
  • The highest performing FortiAnalyzer appliance: 300,000 logs/ sec out-of-box, horizontally scalable to petabytes of storage

Unified Appliance Management

  • Enterprise-grade Big Data Appliance with consolidated hardware and software monitoring through the Cluster Manager
  • Simple installation, updating, expansion, and data management
  • Built-in automation and customizable job templates

Reliable and Scalable Deployment

  • Built-in enterprise high availability and data resiliency based on a newly optimized software and hardware architecture
  • Designed for rapid scalability with multiple Big Data appliances using high speed 40Gb/s built-in switch modules
  • Specifically designed to accelerate the visibility and expansion of the Fortinet Security Fabric

Big Data Security Analytics

  • Monitor and analyze your entire network from end-to-end at an accelerated rate, maximizing the visibility of your entire attack surface, network traffic, applications, users, and end-point hosts
  • Interactive dashboards and informative reports using realtime tracking of key security metrics, link health status and application steering performance
  • Ready to use and customizable report templates for compliance, security posture assessments and system performance checks

Rapid Incident Detection & Response

  • Intuitive event and incident workflow for SOC teams to focus on critical alerts
  • The built-in correlation engine automates and groups alerts to remove false positives
  • Out-of-box connectors and extensive APIs for security teams to automate repetitive tasks

Highlights:

FortiAnalyzer Big Data supports all of the features and technologies of FortiAnalyzer family. FortiAnalyzer Big Data also provides additional scalability and high-speed performance using new massive parallel data processing and Collumnar Data Store processes. After the data ingest, the FortiAnalzyzer Big Data provides an easy to use front-end UI that interacts with the distributed big data SQL engine to search, query and aggregate the data.

FORTIANALYZER APPLIANCES FORTIANALYZER BIG DATA 4500F



Security Analytics
Log View ✔️ ✔️
Interactive FortiView Dashboards ✔️ ✔️
Fabric View - Assets and Identity ✔️ ✔️
Out-of-Box Report Templates ✔️ ✔️


Incident Response
Indicators of Compromise Service ✔️ ✔️
Event Correlation & Alerting ✔️ ✔️
Incident Escalation Workflow & Management ✔️ ✔️


Automation & Integration
Security Fabric Connectors ✔️ ✔️
Security Fabric Integration ✔️ ✔️
REST API ✔️ ✔️

Muti-Tenancy & RBAC
ADOM ✔️ ✔️
Role-Based Access Control ✔️ ✔️






Performance & Scalability
Deployment Small, Medium Enterprise Large Enterprise & Service Providers
High Availability and Redundancy Yes, requires a second unit Yes, built-in HA and redundancy
Sustained Rate Up to 100,000 logs/sec Start at 300,000 logs/sec
Horizontal Scalability - ✔️
Big Data Analytics Engine - ✔️
Massive Parallel Data Processing - ✔️
Distributed Architecture - ✔️
Collumnar Data Store - ✔️

Appliance Management
Chassis - ✔️
Cluster Manager - ✔️

Specifications:


FortiAnalyzer Big Data 4500F
Capacity and Performance
GB/Day of Logs (raw logs) 20 TB
Log Ingestion Rate (logs/sec) 300,000
Devices/VDOMs (Maximum) 10,000+
Max Number of Days Analytics 30
Options Supported
FortiGuard Indicator of Compromise (IOC) ✔️
Hardware Specifications
Form Factor 4 RU
Total Interfaces 4x 40 GE QSFP and 8x 10 GE SFP+
Storage Capacity Blade#1: 2 x NVMe 750 GB SSD = 1.5 TB;
Blade#2 ~#14: 13 x 2 x 7.68 TB SSD x = 200 TB
Usable Storage 200 TB
Removable Hard Drives 28 (Max) SSD, each blade 2 x 2.5" Storage Device
Redundant Hot Swap Power Supplies ✔️
Dimensions
Height x Width x Length (inches) 7 x 17.6 x 32
Height x Width x Length (cm) 17.8 x 44.7 x 81.3
Weight 240 lbs (108.96 kg)
Environment
AC Power Supply 200-240 VAC, 50-60 Hz
Power Consumption (Average / Maximum) 4,745.48 W / 5,016.58 W
Heat Dissipation 16,947.75 (BTU/h)
Max Current 200-240 V / 10-9.8A
Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 8% to 90% (non-condensing)
Compliance
Safety Certifications FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

Documentation:

Download the Fortinet FortiAnalyzer BD Series Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Fortinet Products
FortiAnalyzer-Big Data 4500F
FortiAnalyzer high-performance chassis for big data analytics with 14 blade servers, 4x 40-Gbps QSFP Ports, 8x 10Gbps SFP+ Ethernet Ports, 300,000 logs/sec ingestion rate, and 199TB SSD storage in a single system. Horizontally scalable up to petabytes of storage.
#FAZ-BD-4500F
List Price: £337,968.33
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Hardware plus 24x7 FortiCare and FortiAnalyzer Enterprise Protection
FortiAnalyzer-BigData-4500F Hardware plus 1 Year 24x7 FortiCare and FortiAnalyzer Enterprise Protection
#FAZ-BD-4500F-BDL-466-12
List Price: £642,139.83
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F Hardware plus 3 Year 24x7 FortiCare and FortiAnalyzer Enterprise Protection
#FAZ-BD-4500F-BDL-466-36
List Price: £1,250,482.82
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F Hardware plus 5 Year 24x7 FortiCare and FortiAnalyzer Enterprise Protection
#FAZ-BD-4500F-BDL-466-60
List Price: £1,858,825.82
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Enterprise Protection (24x7 FortiCare plus Indicators of Compromise Service, SOC Subscription license, and FortiGuard Outbreak Alert service)
FortiAnalyzer-BigData-4500F 1 Year Enterprise Protection (24x7 FortiCare plus Indicators of Compromise Service, SOC Subscription license, and FortiGuard Outbreak Alert service)
#FC-10-BD45F-466-02-12
List Price: £304,171.50
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F 3 Year Enterprise Protection (24x7 FortiCare plus Indicators of Compromise Service, SOC Subscription license, and FortiGuard Outbreak Alert service)
#FC-10-BD45F-466-02-36
List Price: £912,514.49
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F 5 Year Enterprise Protection (24x7 FortiCare plus Indicators of Compromise Service, SOC Subscription license, and FortiGuard Outbreak Alert service)
#FC-10-BD45F-466-02-60
List Price: £1,520,857.49
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Subscription license for the FortiAnalyzer SOC component
FortiAnalyzer-BigData-4500F 1 Year Subscription license for the FortiAnalyzer SOC component
#FC-10-BD45F-335-02-12
List Price: £202,781.00
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Subscription license for FortiGuard Outbreak Alert Service
FortiAnalyzer-BigData-4500F 1 Year Subscription license for FortiGuard Outbreak Alert Service
#FC-10-BD45F-462-02-12
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F 24x7 FortiCare Contract
FortiAnalyzer-BigData-4500F 1 Year 24x7 FortiCare Contract
#FC-10-BD45F-247-02-12
List Price: £67,593.67
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F 3 Year 24x7 FortiCare Contract
#FC-10-BD45F-247-02-36
List Price: £202,781.00
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F 5 Year 24x7 FortiCare Contract
#FC-10-BD45F-247-02-60
List Price: £337,968.33
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Subscription license for the FortiGuard Indicator of Compromise (IOC).
FortiAnalyzer-BigData-4500F 1 Year Subscription license for the FortiGuard Indicator of Compromise (IOC).
#FC-10-BD45F-149-02-12
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F 3 Year Subscription license for the FortiGuard Indicator of Compromise (IOC).
#FC-10-BD45F-149-02-36
Our Price: Request a Quote
FortiAnalyzer-BigData-4500F 5 Year Subscription license for the FortiGuard Indicator of Compromise (IOC).
#FC-10-BD45F-149-02-60
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Next Day Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
FortiAnalyzer-BigData-4500F 1 Year Next Day Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
#FC-10-BD45F-210-02-12
List Price: £16,898.42
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F 4-Hour Hardware Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
FortiAnalyzer-BigData-4500F 1 Year 4-Hour Hardware Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
#FC-10-BD45F-211-02-12
List Price: £40,556.20
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F 4-Hour Hardware and Onsite Engineer Premium RMA Service (Requires 24x7 or ASE FortiCare)
FortiAnalyzer-BigData-4500F 1 Year 4-Hour Hardware and Onsite Engineer Premium RMA Service (Requires 24x7 or ASE FortiCare)
#FC-10-BD45F-212-02-12
List Price: £74,353.03
Our Price: Request a Quote
Fortinet FortiAnalyzer-BigData-4500F Secure RMA Service
FortiAnalyzer-BigData-4500F 1 Year Secure RMA Service
#FC-10-BD45F-301-02-12
List Price: £25,347.62
Our Price: Request a Quote
